Constellation Scutum (Shield)

Scutum

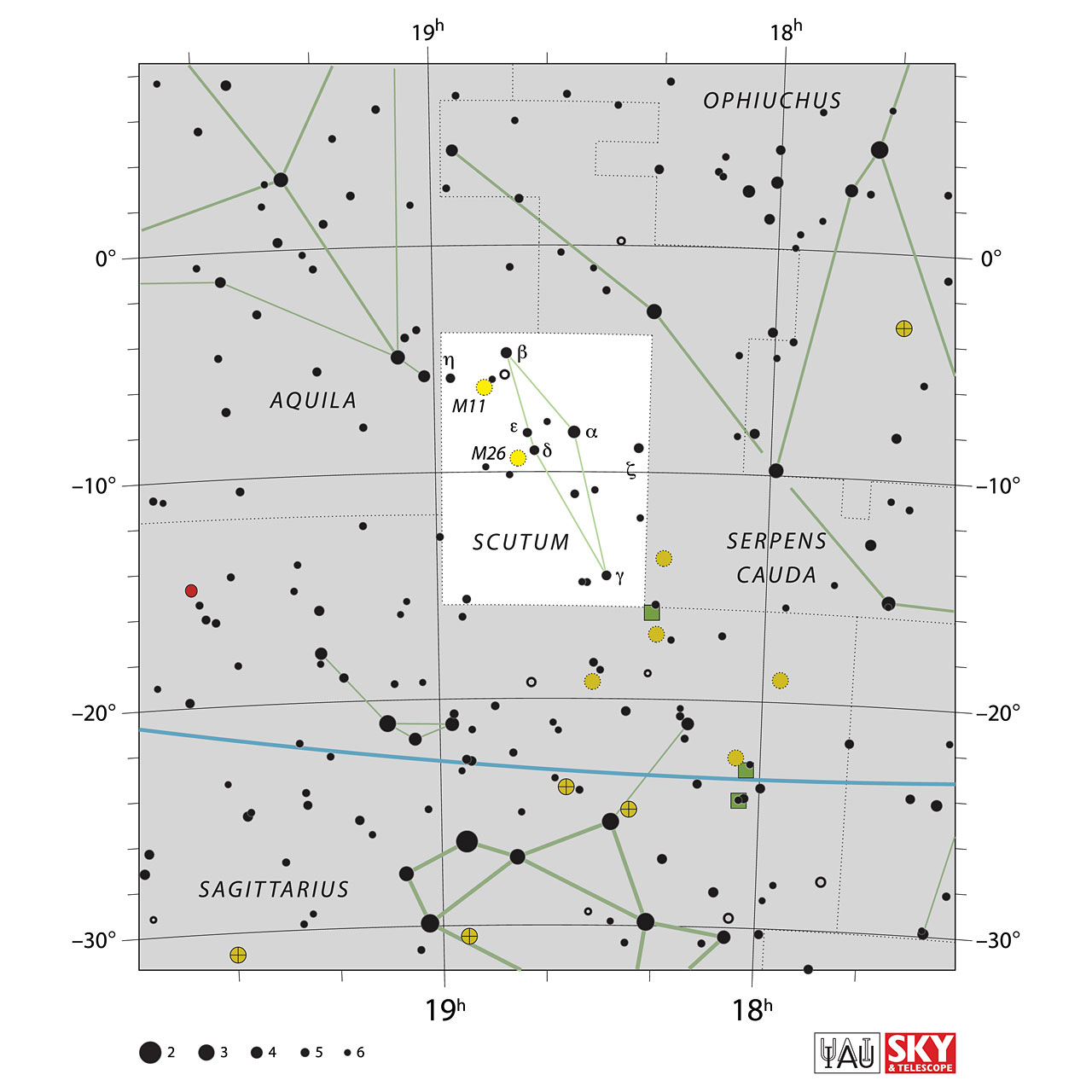

Scutum: IAU Constellation Map [150]

Properties

Scutum is a small and expressionless constellation between Aquila and Sagittarius with almost 4 stars. Size; but it is located in a very star-rich area of the Milky Way. In the northern part of the constellation lies the large, bright Scutum Star Cloud, also called Barnard's Gem of the Milky Way, a star cloud of the Milky Way whose light can sometimes even be seen at night through a blanket of fog is when no stars are otherwise visible. [9, 15, 53]

Data for constellation Scutum [150]
IAU NameScutum
IAU GenitiveScuti
IAU Abbr.Sct
English NameShield
Season (47° N)April … September
Right Ascension18h 21m 36s … 18h 59m 10s
Declination-15° 56' 37" … -03° 50' 01"
Area109 deg2
Neighbours (N↻)Ser, Sgr, Aql

Deep-Sky Object Descriptions

History

The constellation Scutum was first mentioned in 1690 by the Danzig astronomer Johannes Hevelius in his work Firmamentum Sobiescii. He named it Scutum Sobieskii (Shield of Sobieski) in honor of his King John Sobieski III, who supported him strongly and in memory of the liberation of Vienna from the Turkish siege. [7, 10]

Catalogs

Yale Bright Star Catalogue, 5th Revised Ed. (Hoffleit+, 1991) [154]
HR B F DM HD SAO FK5 IR M* ADS VarID RA Dec vMag spType dMag Sep ["] Remarks
HR 6878BD-10 4673169009161412 18 23 02.2-10 13 076.33 B9.5V
HR 6881BD-12 50241690331614153459 18 23 12.2-12 00 535.73 B8IV-Ve
HR 6884ζBD-09 4712169156142267I 18 23 39.5-08 56 034.68 G9-IIIbFe-0.5 SB:2373.7911d, K 5.8k/s, V0 -5.2k/s, asini 188.
HR 6892BD-07 4598169370142288 18 24 42.1-07 04 316.31 K0
HR 6930γBD-14 5071170296161520696 18 29 11.9-14 33 574.70 A3Vn
HR 6932BD-14 5077170397161528 V432 Sct18 29 46.8-14 34 545.96 B9pSiCr VAR:Amp. 0.012v, 2.21d.
HR 6940BD-05 46751705471423533468 18 30 14.3-05 43 276.28 G8II-III SB:503.4d, K 13.8k/s, V0 +26.27k/s, asini 92.8.
HR 6946BD-10 471317074016156911414 18 31 25.7-10 47 455.72 B2V 3.612.3D:CPM companion A0V.,G:Sco-Cen assoc.; probable member of Sco-Cen cluster; in reflection nebula IC 1287.
HR 6956BD-14 5098170902161580S 18 32 20.8-14 38 396.37 A4V 0.0
HR 6959BD-14 5099170975161587I 18 32 43.3-14 51 565.50 K3Ib-IICN1
HR 6962BD-14 5106171130161605 18 33 39.0-14 51 135.76 A2V
HR 6963BD-06 4791171149142386 18 33 22.9-05 54 416.36 A0Vn
HR 6970BD-11 46811713911616323477 18 35 02.4-10 58 385.14 G8III
HR 6973αBD-08 46381714431424081482I 1105618 35 12.4-08 14 393.85 K3-III-IIIb VAR:Amp. 0.10V.
HR 6989BD-14 513917195716168711512 18 38 04.6-14 00 176.47 B9IV 4.82.0D:AB, fixed sep.
HR 7007BD-07 4648172348142480I11552 18 40 00.5-07 47 265.84 K4III 5.019.4D:Optical.
HR 7014BD-14 5156172594161730 18 41 42.5-14 33 516.42 F2Ib
HR 7020δBD-09 4796172748142515148611581 Del Sct18 42 16.4-09 03 094.72 F2IIIpDel Del 4.552.6D:Component B, 10v, gK, optical. AC, CPM? A may be close binary, about 10d orbital period.,G:Hyades group.,VAR:ADS 11581A, Delta Sct 4.98 - 5.16B, 0.193770d, 0.11636d. Beat period 5.24774d. Other periods 0.095129, 0.186872,,VAR:0.838d. This "prototype" Delta Sct star is the least typical of its class.
HR 7024BD-07 4670172831142525 18 42 36.1-07 04 246.15 K0-1III
HR 7032εBD-08 4686173009142546702I11601 18 43 31.3-08 16 314.90 G8IIb 8.637.6S:Also classified G5III.
HR 7034BD-06 4859173093142557 18 43 51.4-06 49 076.31 F7V
HR 7055BD-10 479717363816181711670 1133318 46 43.3-10 07 305.71 F2Ib-II 8.23.4D:Fixed sep.,VAR:ADS 11670A, I, 5.64 - 5.81V.
HR 7063βBD-04 45821737641426181489I 18 47 10.5-04 44 524.22 G4IIa eG:Sct OB2.,S:H alpha emission. Also classified G5II CN0.5 Fe1 Hdel1. IUE observations indicate a B9.5 companion.,SB:834d, K 16.7k/s, V0 -21.9k/s, asini 179. Unresolved by speckle interferometry.
HR 7066BD-05 4760173819142620I R Sct18 47 29.0-05 42 185.20 K0Ibp vG:Sct OB2.,S:H alpha emission. Also classified G0eIa-K0pIb.,VAR:Discovered by Pigott in 1795. RVa 4.45 - 8.20V, 140.05d, period varies. Variable He 10830 and Ti emission. Largest,VAR:intrinsic polarization in UV at minimum light. Light and RV periods differ.
HR 7083BD-06 4922174208142661I11719 18 49 41.0-05 54 465.99 K2Ib 2.5113.7D:B, 12.5v at 23"; C, 8.14V, +1.05(B-V), +0.75(U-B), K0II-III.,RV:ADS 11719C, +35k/s, probably optical.,SB:ADS 11719A, 866.5d, K 11.9k/s, V0 -8.30k/s, asini 134.9.
HR 7089BD-08 4726174325142674I11726 S Sct18 50 20.0-07 54 276.80 C5II 4.014.4VAR:ADS 11726A, SR 9.7 - >10.9p, 148.0d.
HR 7094BD-09 4859174464142692 18 50 58.5-09 46 275.83 F2Ib
HR 7110BD-09 4876174866142741S 18 53 01.9-09 34 346.34 A7Vn 0.2
HR 7119BD-15 5143175156161964 18 54 43.1-15 36 115.10 B5II G:Sco-Cen assoc.; member of Pleiades group.
HR 7149ηBD-06 4976175751142838I 18 57 03.7-05 50 464.83 K2III

Revised+Historic NGC/IC, Version 22/9, © Dr. Wolfgang Steinicke [277]
Planetary Nebulae
NameRADecTypebMagvMagDimDreyer DescriptionIdentification, Remarks
IC 129518 54 37.1-08 49 35PN15.012.51.5pB, pL, gbMPK 25-4.2, CS=15.0
Galactic Nebulae
NameRADecTypebMagvMagDimDreyer DescriptionIdentification, Remarks
IC 128718 31 26.0-10 47 42RN20 × 10* 5.5 in L, E nebLBN 75, CED 163
Open Clusters
NameRADecTypebMagvMagDimDreyer DescriptionIdentification, Remarks
NGC 662518 23 12.8-12 00 47OCL9.039Cl, lC, lRi, st 11…12OCL 58, *Grp ?
NGC 663118 27 09.5-12 01 35II2m11.77Cl, pL, pRi, st 12…15OCL 59
NGC 663918 30 57.8-13 10 14OCL5Cl (in M Way)OCL 57
NGC 664918 33 28.3-10 24 08II2m8.96Cl, P, lC, pS, st 9·10, 12…13OCL 66
NGC 666418 36 30.6-08 11 15III2m7.812Cl, L, pRi, vlCOCL 68
NGC 668318 42 12.7-06 12 45I2p9.43Cl, vRi, vlC (in M. Way)OCL 74
NGC 669418 45 15.0-09 23 06I1m8.08Cl, cL, pRi, pC, st 12…15M 26, OCL 67
NGC 670418 50 45.8-05 12 18I3m9.26Cl, B, 60 st 13 (Auw 43)OCL 82
NGC 670518 51 05.0-06 16 12I2r5.811!, Cl, vB, L, iR, Ri, *9, st 11…M 11, OCL 76, Wild Duck cluster
Globular Clusters
NameRADecTypebMagvMagDimDreyer DescriptionIdentification, Remarks
NGC 671218 53 04.3-08 42 20IX8.19.8globular, pB, vL, irr, vglbM, rrrGCL 103

«Strasbourg-ESO Catalogue of Galactic Planetary Nebulae» Acker et al., 1992 [141]
PNGRA
J2000.0
Dec
J2000.0
Main IDPKIRASDiscovererIdentitiesoDiam
["]
rDiam
["]
Dist
[kpc]
Rvel
[km/s]
ExpVel
[km/s]
C* NameC* MagC* SP Type
PN G016.4-01.918 27 57-15 32 57M 1-4616-01.118250-1534MINKOWSKI 1946ARO 387, He 2- 401, SaSt 2-21, VV 182, VV' 406 11. 12. +30.0 ± 3.0 7.0 (O-III)AG82 310B: 13.19, V: 12.83
PN G016.9-02.018 29 20-15 07 40Sa 3-13418264-1509SANDULEAK 1976 0.
PN G017.7-02.918 33 58-14 52 26M 1-5217-02.118311-1454MINKOWSKI 1946ARO 283, Sa 2-346, VV 192, VV' 46 6.6 8. +133.0 ± 5.0
PN G017.9-04.818 41 15-15 33 47M 3-3017-04.118383-1536MINKOWSKI 1948ARO 288, Sa 3-143, VV' 438 17.2 22. +71.0 ± 25.0AG82 326V: 17.9OVI, WC early
PN G018.6-02.218 33 04-13 44 20M 3-5418-02.118302-1346MINKOWSKI 1948Sa 3-137, VV' 420 0. 5.5 +157.0 ± 5.0
PN G019.2-02.218 34 14-13 12 25M 4-1019-02.118313-1314MINKOWSKI 1948ARO 284, Sa 2-347 0. 1.2 +50.0 ± 5.0
PN G019.4-05.318 45 55-14 27 38M 1-6119-05.118430-1430MINKOWSKI 1946Sa 2-365, VV 205, VV' 448 0. 1.8 +40.8 ± 10.1B: 17.1WC ?
PN G019.7-04.518 43 38-13 44 49M 1-6019-04.118408-1347MINKOWSKI 1946Sa 2-359, VV 203, VV' 443< 10. 2.5 +76.0 ± 25.0WC
PN G020.2-00.618 30 17-11 36 54A 4520-00.1ABELL 1955A55 33, VV' 415 285. AG82 313U: 20.5, B: 21.5, V: 21.1
PN G020.7-05.918 50 44-13 31 02Sa 1-818479-1334SANDULEAK 1974AS 326, MHa 204-32, Sa 2-370 8. 5.6 B: 14.41, V: 14.16
PN G020.9-01.118 33 29-11 07 22M 1-5121-01.118307-1109MINKOWSKI 1946He 2- 411, VV 190, VV' 423 9.5 15. +3.0 ± 11.0WC
PN G021.1-05.918 51 31-13 10 37M 1-6321-05.118486-1314MINKOWSKI 1946Sa 2-371, VV 209, VV' 459 4.2 +25.5 ± 10.1 7.5 (O-III)
PN G021.2-03.918 44 07-12 12 58We 1- 718413-1216WEINBERGER 1977 17. AG82 328B: >21.
PN G021.7-00.618 33 15-10 15 07M 3-5521-00.2MINKOWSKI 1948ARO 282, Sa 3-138, VV' 422 7.2 +26.0 ± 11.0AG82 318B: 20.7
PN G021.8-00.418 32 41-10 05 49M 3-2821-00.118299-1008MINKOWSI 1948ARO 281, Sa 3-136, VV' 418 9. 5. +21.0 ± 11.0
PN G022.0-03.118 42 57-11 06 53M 1-5822-03.1MINKOWSKI 1946Sa 2-357, VV 201, VV' 440 6.4 +60.0 ± 25.0
PN G022.1-02.418 40 20-10 39 47M 1-5722-02.118375-1042MINKOWSKI 1946ARO 287, Sa 2-356, VV 199, VV' 436 8.4 8. +92.4 ± 17.3B: 17.3, V: 16.3
PN G022.5+01.018 28 35-8 43 24MaC 1-1318258-0845MAC CONNELL 1978 17.
PN G023.3-07.619 01 21-11 58 24MaC 1-16MAC CONNELL 1978 10.
PN G023.8-01.718 41 07-8 55 59K 3-1123-01.218383-0858KOHOUTEK 1964Sa 3-144 0. 3.
PN G023.9+01.218 30 30-7 27 41MA 13MAEHARA 1982 0.
PN G023.9-02.318 43 20-9 04 49M 1-5923-02.118405-0907MINKOWSKI 1946ARO 289, Sa 2-358, VV 202, VV' 442 4.6 4.8 1.45 +99.0 ± 11.4 13.0 (O-III)
PN G024.2-05.218 54 17-10 05 11M 4-1124-05.118515-1009SHAPLEYSa 2-373 21. +19.0 ± 25.0V: 18.7
PN G024.3-03.318 47 48-9 09 08Pe 1-1724-03.118450-0912PEREK 1960Sa 3-147, VV' 454 5.
PN G024.8-02.718 46 35-8 28 02M 2-4624-02.118437-0831MINKOWSKI 1947Sa 3-146, VV 206, VV' 451 4.4 +83.0 ± 11.0
PN G025.3-04.618 54 20-8 53 32K 4- 825-04.118516-0851KOHOUTEK 1964Sa 2-374 0.
PN G025.4-04.718 54 36-8 49 49IC 129525-04.218519-0853CURTIS 1919ARO 8, VV 213, VV' 465 90. 109. -36.0 ± 25.0AG82 334B: 15.5
PN G025.9-00.918 42 05-6 41 03Pe 1-1425-00.1PEREK 1960VV' 439 4.6
PN G025.9-02.118 46 25-7 14 34Pe 1-1525-02.118436-0717PEREK 1960Sa 3-145, VV' 450 5. 4.8 B: 17.3, V: 16.2
PN G026.0-01.818 45 28-6 56 58Pe 2-1526-01.2PEREK 1960VV' 447 3. 2.5
PN G026.3-02.218 47 32-6 53 56Pe 1-1626-02.118448-0657PEREK 1960ARO 291, Sa 2-366, Th 1- C, VV' 453 7.6 B: 16.5, V: 15.5
PN G026.5-03.018 50 45-7 01 32Pe 1-1926-02.318470-0705PEREK 1960ARO 293, Sa 2-368, VV' 456 4.4 4.3 B: 16.7, V: 16.4
PN G026.6-01.518 45 35-6 18 30K 4- 526-01.118429-0621KOHOUTEK 1964 20. :
PN G027.3-02.118 48 47-5 56 04Pe 1-1827-02.118461-0559PEREK 1960Sa 3-148, Th 1- D, VV' 455 6.8 1.2
PN G027.3-03.418 53 29-6 29 14A 4927-03.1ABELL 1955A55 37, VV' 461 35. AG82 332B: >21.
PN G027.4-03.518 54 02-6 26 20Vy 1- 427-03.218513-0630VYSSOTSKY 1942Sa 2-372, Th 1- E, VV 211, VV' 462< 15. 4. +110.0 ± 25.0B: 15.8, V: 15.6
PN G027.7+00.718 39 22-4 19 50M 2-4527+00.118367-0422MINKOWSKI 1947ARO 286, Sa 3-141, Th 1- B, VV 198, VV' 43 6.4 7.5 AG82 324B: >21.
PN G028.2-04.018 57 17-5 59 41Pe 1-2028-04.118546-0604PEREK 1960ARO 298, Sa 2-377, Th 1- G, VV' 468 6.4
PN G028.7-03.918 57 50-5 27 37Pe 1-2128-03.118551-0531PEREK 1960Sa 3-150, Th 1- H, VV' 469 8.6

References

7«Der grosse Kosmos-Himmelsführer» von Ian Ridpath und Wil Tirion; Kosmos Verlag; ISBN 3-440-05787-9
9«Drehbare Sternkarte SIRIUS» von H. Suter-Haug; Hallwag-Verlag, Bern
10«dtv-Atlas zur Astronomie» von Joachim Herrmann; Deutscher Taschenbuch Verlag; ISBN 3-423-03006-2
15«Hartung's Astronomical Objects for Southern Telescopes» by David Malin and David J. Frew; Melbourne University Press 1995; ISBN 0-522-84553-3
53Exploring The Wonders Of Scutum by Robert Garfinkle; Astronomy 7/92, p.67
141Strasbourg-ESO Catalogue of Galactic Planetary Nebulae; A. Acker, F. Ochsenbein, B. Stenholm, R. Tylenda, J. Marcout, C. Schohn; European Southern Observatory; ISBN 3-923524-41-2 (1992); Bibcode:1992secg.book.....A; cdsarc.u-strasbg.fr/viz-bin/cat/V/84
150IAU: The Constellations, 11. Oktober 2020; iau.org/public/themes/constellations
154Yale Bright Star Catalog, 15. Oktober 2020; tdc-www.harvard.edu/catalogs/bsc5.html
277«Historische Deep-Sky Kataloge» von Dr. Wolfgang Steinicke; klima-luft.de/steinicke (2021-02-17)
