Galaxy NGC 1097 (Arp 77)

NGC 1097
NGC 1097: Barred spiral galaxy with tidal streams in Fornax; 16" f/8.3 Hypergraph, SBIG STL-11000M,; 38 x 10 min Luminance, je 5 x 10 min RGB, 2x2 Binning; Farm Tivoli, Namibia; © 2014 Eduard von Bergen, Hansjörg Wälchli [29]


William Herschel was the first to encounter this galaxy on 9 October 1790 with his 18.7 inch reflector. He cataloged it as V 48 (class V = very large nebulae). He noted: «Very bright, extended 75°, north preceding, south following, 8' long. A very bright nucleus, confined to a small part, or about 1' diameter.» [465]

In 1966 Halton Arp published his «Atlas of Peculiar Galaxies», where he divided galaxies into groups based on purely morphological criteria. The galaxy NGC 1097 was listed as number 77 in the group «#49-78: Spiral galaxy with small, high surface brightness companions in arms». He noted: «Material of arm seems to flow 'around' companion.» Hence this peculiar galaxy is also referred to as Arp 77 or APG 77. [199]

Physical Properties

NGC 1097 is a barred spiral galaxy of type SB(s)b and has an exceptionally bright core and therefore belongs to the group of Seyfert galaxies (Type 1), which, together with quasars, are among the most active galaxies. The supermassive black hole in the center is fed by stars, gas and dust, which fall in spirals, are torn apart and heated up, forming an accretion disk around the black hole.

NGC 1097
NGC 1097: Image taken with the 8.2 meter telescope of the VLT in Chile. © ESO [236]

The distances calculated from the measured heliocentric velocities range from 14 Mpc to 17.7 Mpc (45.6 to 57.7 million light years). [145]

In Fig. 1 and Fig. 2, a noticeable bright ring can be seen around the black hole in the center. There are masses of new stars that are stimulated by the inflow of matter via central bars. The diameter of the ring is estimated to be around 5000 light years and the mass of the black hole to be around 140 million solar masses. For comparison: the black hole in the center of our Milky Way has «only» a few million solar masses. [235, 237]

NGC 1097
NGC 1097: Galaxy NGC 1097 with all four tidal streams, which can be traced to the dwarf galaxy in stream 1; © 2021 Eduard von Bergen [29]

In the image in Fig. 1, four faint rays can be seen, which seem to come radially from the center of the galaxy. These are highlighted in Fig. 3. These were originally interpreted as the remnants of the jets of a currently less active core. A further analysis of the spectral energy distribution from radio to X-rays could rule out such an origin. These «jets» actually consist of individual stars and were created through gravitational interaction with small dwarf galaxies. The main culprit is not the small, elliptical galaxy NGC 1097A, but the remnant of it was discovered in the L-shaped tidal current. [238]

Revised+Historic NGC/IC Version 22/9, © 2022 Dr. Wolfgang Steinicke [277]
Name RA Dec Type bMag vMag B-V SB Dim PA z D(z) MD Dreyer Description Identification, Remarks
NGC 1097 02 46 19.5 -30 16 32 Gx (SBb) 10.2 9.5 0.7 13.8 9.4 × 6.6 130 0.004240 17.91 20.040 vB, L, vmE 151°, vbMN WH V 48; h 2495; GC 610; ESO 416-20; MCG -5-7-24; UGCA 41; IRAS 02441-3029; Arp 77; AM 0244-302
NGC 1097 A 02 46 09.9 -30 13 43 Gx (E4) 14.1 13.1 1.0 12.2 0.8 × 0.5 105 0.004563 19.27 vB, L, vmE 151°, vbMN WH V 48; h 2495; GC 610; ESO 416-19; MCG -5-7-22

Finder Chart

The galaxy NGC 1097 is located in constellation Fornax (Furnace) at a declination of -30° and is therefore low in the southern sky. The best time for this is around November (opposition with the Sun on 5 November), when the constellation is highest above the southern horizon at midnight. Follow the river Eridanus next to Rigel in Orion to the second river bend. Unless the three stars Dalim (α Fornacis, 3.79 mag) - β Fornacis (4.46 mag) - ν Fornacis (4.96 mag) sink into the light dome of Milan or are blocked by a mountain, they show you the way to NGC 1097.

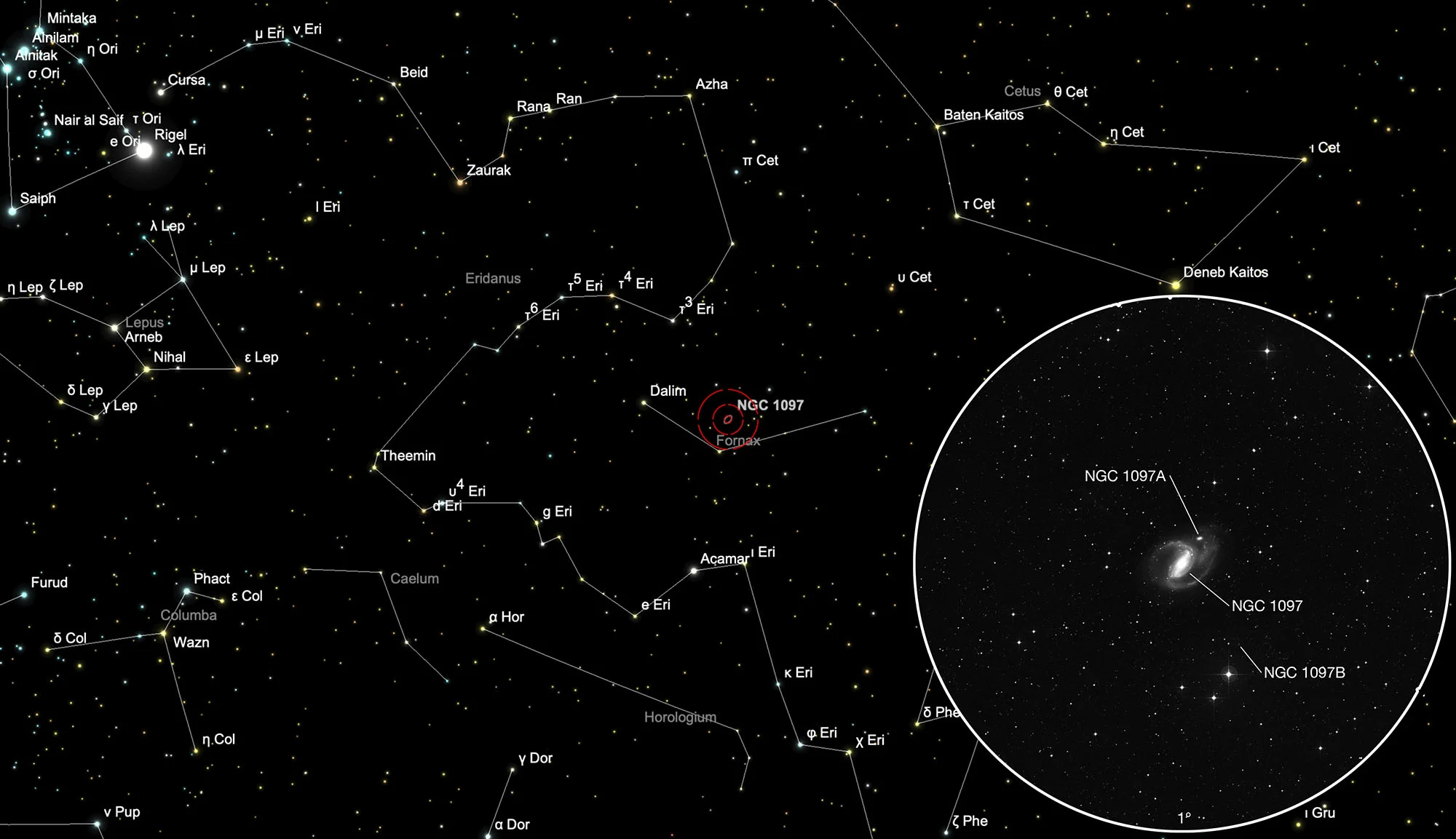

Finder Chart Galaxy NGC 1097 (Arp 77)
Galaxy NGC 1097 (Arp 77) in constellation Fornax. Charts created using SkySafari 6 Pro and STScI Digitized Sky Survey. Limiting magnitudes: Constellation chart ~6.5 mag, DSS2 close-ups ~20 mag. [149, 160]

Visual Observation

762 mm aperture: The extremely low and very southerly Seyfert galaxy NGC 1097 with companion PGC 10479 should be planned very well in advance for your successful sighting. In our latitudes and especially in a mountain valley, visibility is only given for three quarters of an hour. Thanks to a right-angled triangle made up of three roughly equally bright stars, NGC 1097 can be clearly found, despite the already bad refraction. The core shows only a slight elongation, whereby it appears at least slightly washed out. The companion galaxy PGC 10479 exceeds expectations in terms of its visibility, it is much easier to spot than expected. — 30" f/3.3 Slipstream Dobsonian, Hasliberg Reuti, 5. 11. 2021, Eduard von Bergen
