Rosette Nebula (NGC 2237+)

NGC 2237
NGC 2237: Rosetta Nebula with open cluster in Monoceros; Pentax 105 SDHF refractor @ f/4.8; Canon EOS 20Da; Vixen New Atlux; 26x5 min @ 1600 ASA; Gurnigelpass, 1600 m AMSL; © 30. 1. 2006 Manuel Jung [45]
NGC 2237
NGC 2237: Rosetta Nebula in Monoceros; 500 mm Cassegrain f=3625mm / f7.2; SBIG STL11K; 120+30+30+30 min LRGB; Bernese Highlands; © 2011 Radek Chromik
NGC 2237
NGC 2237: Rosetta Nebula; TEC 140 ED with 0.9x flattner on a AOK Herkules V12 mount, Canon 6D (not modified); 45 x 10 min; Lü Stailas; © 9. 1. 2021 Stefan Berchten [35]

History

The open star cluster in the Rosette Nebula was first recorded by British astronomer John Flamsteed on 17 February 1690. [277] William Herschel cataloged it on 24 January 1784 as VII 2, with the class VII representing «pretty much compressed clusters of large or small stars». He described it as follows: «A beautiful cluster of scattered stars chiefly of 2 sorts. The first large, the second arranged in winding lines. Contains the 12th Monoc.» [463] That star cluster was later listed as NGC 2244 in Dreyers «New General Catalogue of Nebulae and Clusters of Stars». [313]

On 4 March 1830 Herschel's son John, rediscovered the same star cluster and cataloged it as h 392 (GC 1420) and described it as «stars of 8th magnitude in large pretty bright cluster» [467]. His discovery was later given the number NGC 2239 by Dreyer. [313]

On 28 February 1864 the German astronomer Albert Marth discovered «small stars in nebulosity». He was observing in Malta, using William Lassell's 48 inch reflector. His discovery was later added as GC 5361 by John Herschel and then as NGC 2238 by Dreyer. [142, 313]

The American astronomer Lewis Swift was using the 16 inch refractor at Warner Observatory in 1865 and noticed a «pretty bright, very very large diffuse» nebula around the star cluster. His discovery was cataloged by Dreyer as NGC 2237 with the remark that it may be the same as GC 5361 (NGC 2238). On 27 February 1886 Swift looked again at the same spot and noticed another «most extremely faint, large, irregular round, extremely difficult» nebula, which was then added as NGC 2246 by Dreyer. [196, 313]

The designation NGC 2239 is usually used for the Rosette Nebula, but this is not correct. Based on Dreyer's description, NGC 2239 is Herschel's star cluster and the designations related to the surrounding nebula are NGC 2237, NGC 2238 and NGC 2246.

Physical Properties

The Rosette Nebula is an H-II region, a star-forming region with clouds of gas and dust. At a distance of about 5000 to 5200 light-years and a diameter of 130 light-years, it appears relatively large in the sky, about 80 x 60 arc minutes. The mass of the nebula is estimated at around 10'000 solar masses. [196]

Revised+Historic NGC/IC Version 22/9, © 2022 Dr. Wolfgang Steinicke [277]
Name RA Dec Type bMag vMag B-V SB Dim PA z D(z) MD Dreyer Description Identification, Remarks
NGC 2237 06 30 54.6 +05 02 52 EN 80 × 50 1.600 pB, vvL, dif (? = 5361) w part of Rosette nebula
NGC 2238 06 30 40.3 +05 00 47 EN 6.0 80 × 60 1.600 S * in nebulosity LBN 948, knot in Rosette nebula
NGC 2239 06 32 19.0 +04 51 24 dup 5.3 4.8 24 1.445 * 8 in L, P, B Cl NGC 2244, OCL 515, in Rosette nebula
NGC 2244 06 32 19.0 +04 51 24 OCL (II3p) 5.3 4.8 24 1.445 Cl, beautiful, st sc (12 Monoc) NGC 2239, OCL 515, in Rosette nebula
NGC 2246 06 32 33.7 +05 07 42 EN 1.600 eeF, L, irrR, e diffic LBN 948, part of Rosette nebula

Finder Chart

The open star cluster NGC 2239 with the Rosette Nebula around it is located in the constellation Monoceros, a rather inconspicuous constellation along with Orion in the Milky Way band. On clear, dark winter nights the star cluster NGC 2239 is visible to the naked eye, otherwise the two stars ε Monocerotis (4.4 mag) and 13 Monocerotis (4.51 mag) help position the Telrad.

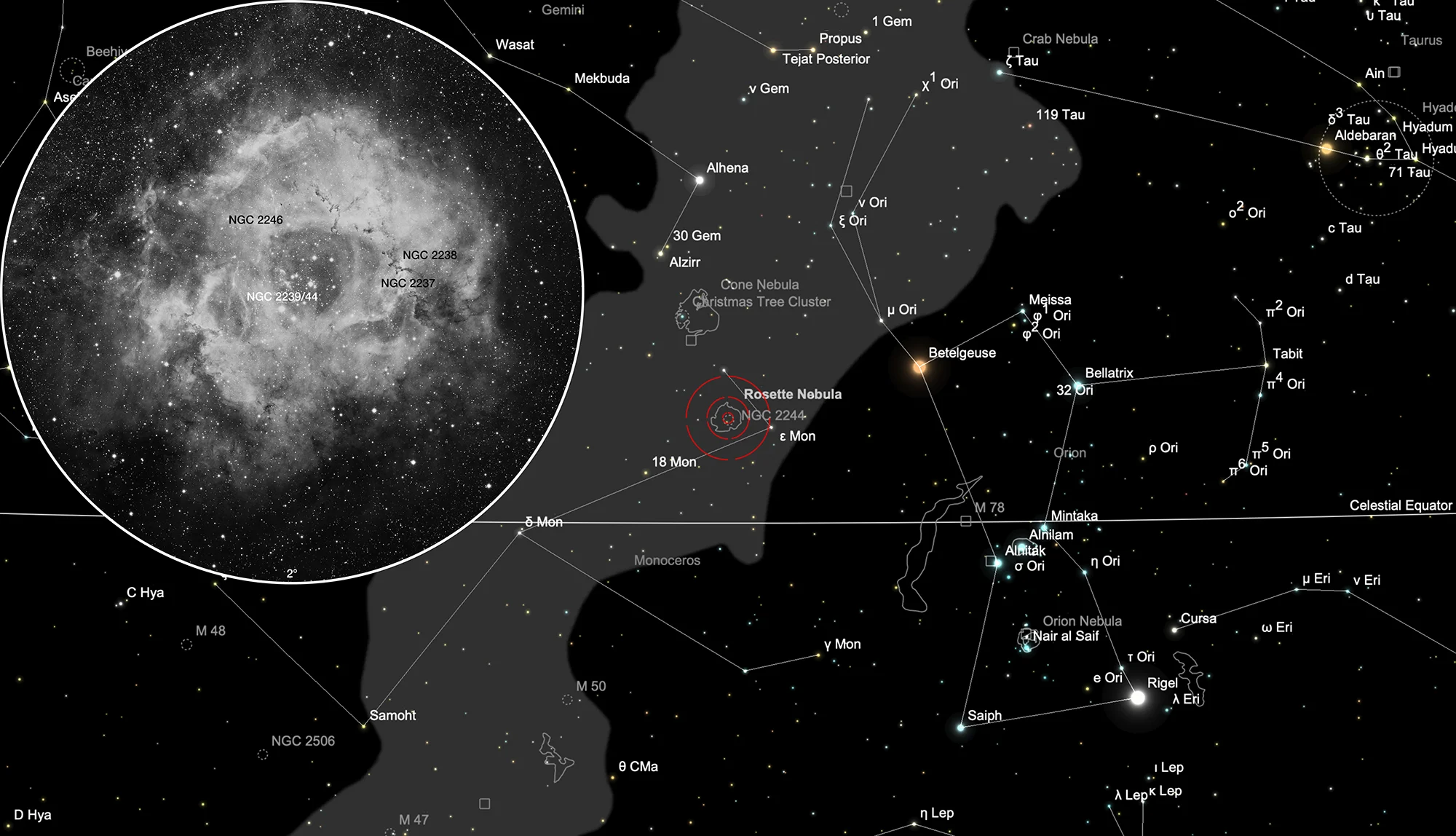

Finder Chart Rosette Nebula (NGC 2237+)
Rosette Nebula (NGC 2237+) in constellation Monoceros. Charts created using SkySafari 6 Pro and STScI Digitized Sky Survey. Limiting magnitudes: Constellation chart ~6.5 mag, DSS2 close-ups ~20 mag. [149, 160]

Visual Observation

400 mm aperture: The huge nebula is about two times larger than the field of view of my 21 mm Ethos eyepiece (85x). Without filter only a grayish haze around the open cluster is detectable. With O-III filter the nebula pops out with high contrast and one can see structures in it. A fine sight. — Taurus T400 f/4.5 Dobsonian, Bernd Nies, Glaubenberg Langis, 28 February 2022

More Objects Nearby (±15°)

References

  • [35] Astro Optik Kohler, Beat Kohler; aokswiss.ch
  • [45] Astro-, Landschafts- und Reisefotografie sowie Teleskopbau, Manuel Jung; sternklar.ch
  • [142] «A Catalogue of New Nebulæ discovered at Malta with the Four-foot Equatoreal in 1863 to 1865» Lassell, William ; Marth, A.; Memoirs of the Royal Astronomical Society, Vol. 36, p.45, 1867; Bibcode:1867MmRAS..36...45L
  • [149] SkySafari 6 Pro, Simulation Curriculum; skysafariastronomy.com
  • [160] The STScI Digitized Sky Survey; archive.stsci.edu/cgi-bin/dss_form
  • [196] Celestial Atlas by Curtney Seligman; cseligman.com/text/atlas.htm (2020-12-28)
  • [277] «Historische Deep-Sky Kataloge» von Dr. Wolfgang Steinicke; klima-luft.de/steinicke (2021-02-17)
  • [313] «A New General Catalogue of Nebulae and Clusters of Stars, being the Catalogue of the late Sir John F.W. Herschel, Bart., revised, corrected, and enlarged» Dreyer, J. L. E. (1888); Memoirs of the Royal Astronomical Society. 49: 1–237; Bibcode:1888MmRAS..49....1D
  • [463] «Catalogue of one thousand new nebulae and clusters of stars» William Herschel, Philosophical Transactions of the Royal Society of London, 1 January 1786; DOI:10.1098/rstl.1786.0027
  • [467] «Catalogue of nebulae and clusters of stars» John Frederick William Herschel, Philosophical Transactions of the Royal Society of London, 1 January 1864; DOI:10.1098/rstl.1864.0001
