Planetary Nebula Abell 78

Abell 78
Abell 78: Planetary nebula in Cygnus; 500 mm Cassegrain f=5800 mm f/11.4; SBIG STL11K; 100+20+20+20 min LRGB; Bernese Highlands; © 2005 Radek Chromik [32]
Abell 78
Abell 78: Planetary nebula; Takahashi Mewlon 250 CR, Reducer CR 0.73 (f=1800mm / f7.25), SBIG ST-8300; 17L x 1200sec 1×1, 11R, 12G, 15B 2×2 x 1200sec; Bernese Highlands; © 2020 Bernhard Blank, Dragan Vogel [32]

History

The planetary nebula Abell 78 (PN A55 64, PN A66 78, PK 81-14.1) was discovered in 1955 by the American astronomer George Ogden Abell on the photo plates of the Palomar Observatory Sky Survey (POSS). In 1966 he published a list of a total of 86 planetary nebulae discovered on the POSS photo plates. [331, 332]

Abell 78
Abell 78: Combination of an image from the Hubble Space Telescope and PanSTARRS. © ESA/Hubble & NASA, M. Guerrero, Judy Schmidt [165, 334]

Physical Properties

When stars with about 0.8 to 8 times the solar mass of the hydrogen driving nuclear fusion are used up, they collapse to form dense, hot, white dwarf stars. During this process, the dying star sheds its outer layers of material and forms a cloud of gas and dust known as the planetary nebula (PN). This name is historical and misleading. It stems from the fact that the first planetary nebulae discovered in telescopes were mostly spherical and looked like distant gas planets.

However, some PNs like Abell 78 are the result of what is known as a «reborn» star. Although the star's core has stopped burning hydrogen and helium, a thermonuclear runaway is ejecting material at its surface at high speed. This ejection shocks the material of the old nebula and sweeps it away, creating filaments and the irregular shell around the central star. The faint outer halo is predominantly hydrogen, while the inner elliptical ring is predominantly helium. This confirms that inside stars hydrogen is converted to helium, which can be ejected back into the galactic gas pool to create future enriched stars. [334, 335]

«Strasbourg-ESO Catalogue of Galactic Planetary Nebulae» Acker et al., 1992 [141]
Designations PN G081.2-14.9: A 78, PK 81-14.1, A55 64, ARO 174, VV' 554
Right Ascension (J2000.0) 21h 35m 29s
Declination (J2000.0) +31° 41' 45"
Dimensions 107." (optical)
Distance 0.70 kpc
Radial Velocity +17.0 ± 10.0 km/s
Expansion Velocity 27. (O-III) km/s
C-Star Designations AG82 433, CSI +31-21334 0, UBV 18570
C-Star Magnitude U: 11.86, B: 13.02, V: 13.21
C-Star Spectral Type O5fek, Of/WR(C)
Discoverer ABELL 1955

Finder Chart

The planetary nebula Abell 78 is located in the constellation Cygnus (Swan). The best observation time is April to November.

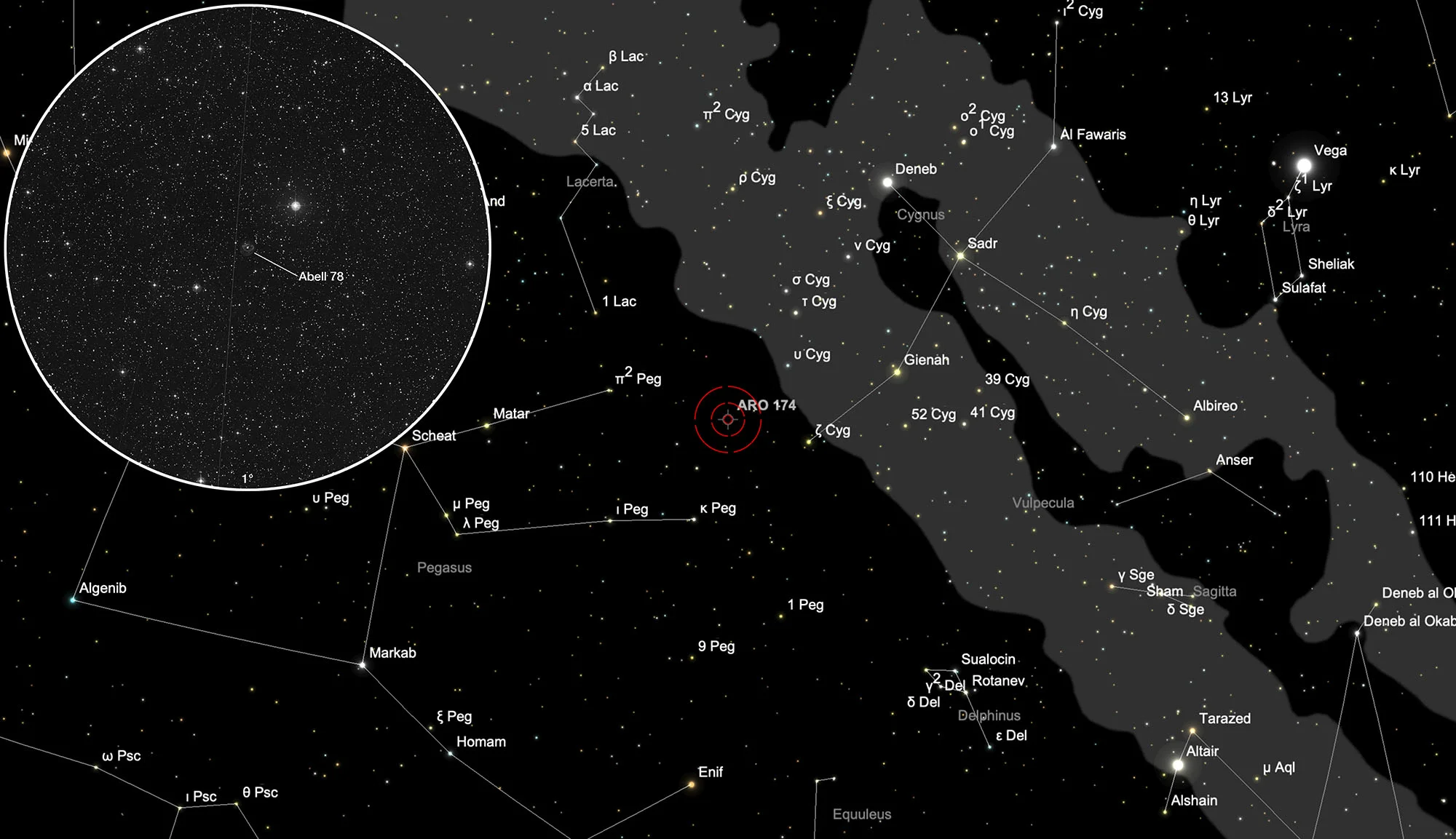

Finder Chart Planetary Nebula Abell 78
Planetary Nebula Abell 78 in constellation Cygnus. Charts created using SkySafari 6 Pro and STScI Digitized Sky Survey. Limiting magnitudes: Constellation chart ~6.5 mag, DSS2 close-ups ~20 mag. [149, 160]
