Helix Nebula (NGC 7293)

NGC 7293
NGC 7293: Image taken with the Hubble Space Telescope. © ESA/Hubble & NASA [184]

History

This planetary nebula was discovered by Karl Ludwig Harding in 1823. It is only 500-700 light-years away and is one of the closest planetary nebulae. It's quite large, about 5.7 light-years across, appears to us about half the size of the Full Moon, but doesn't appear very bright, which is why it was initially missed by the two Herschels.

Well-known names for NGC 7293 are «Helix Nebula», «Caldwell 63», as well as more recently «The Eye of God» or «The Eye of Sauron». The Hubble and Spitzer Space Telescope images published in Fig. 1 and Fig. 2 are likely to be decisive for the latter two names.

Physical Properties

NGC 7293
NGC 7293: Infrared image by Spitzer Space Telescope [211]

The physical properties of this planetary nebula are comparable to those of the Ring Nebula (M 57) in Lyra or the Cat's Eye Nebula (NGC 6543) in Draco. In the center is a white dwarf star. The inner ring is thought to have formed 12'000 years ago and was then overtaken by the outer ring 6560 years ago. An expansion rate of 32 km/s was measured on the inner ring and 40 km/s on the outer ring by means of spectroscopy. [119, 196, 211]

«Strasbourg-ESO Catalogue of Galactic Planetary Nebulae» Acker et al., 1992 [141]
DesignationsPN G036.1-57.1: NGC 7293, PK 36-57.1, ARO 17, VV 275, VV' 563
Right Ascension (J2000.0)22h 29m 39s
Declination (J2000.0)-20° 50' 15"
Dimensions 980." (optical), 660." (radio)
Distance 0.30 kpc
Radial Velocity-28.2 km/s ± 3.0 km/s
Expansion Velocity 14.0 km/s (O-III), 24. km/s (N-II)
C-Star DesignationsAG82 441, CSI -21 -22270, GCRV 14134, PLX 5437, USNO 271, WD 2201 -21. 1
C-Star Magnitude11.81 mag (U filter), 13.10 mag (B filter), 13.50 mag (V filter)
C-Star Spectral TypeHg O(H)
DiscovererCURTIS 1918

Finder Chart

The Helix Nebula is located in the constellation Aquarius in a large area with relatively few bright stars for orientation. Due to its declination of -20°, the best observation time is in the months of August to October.

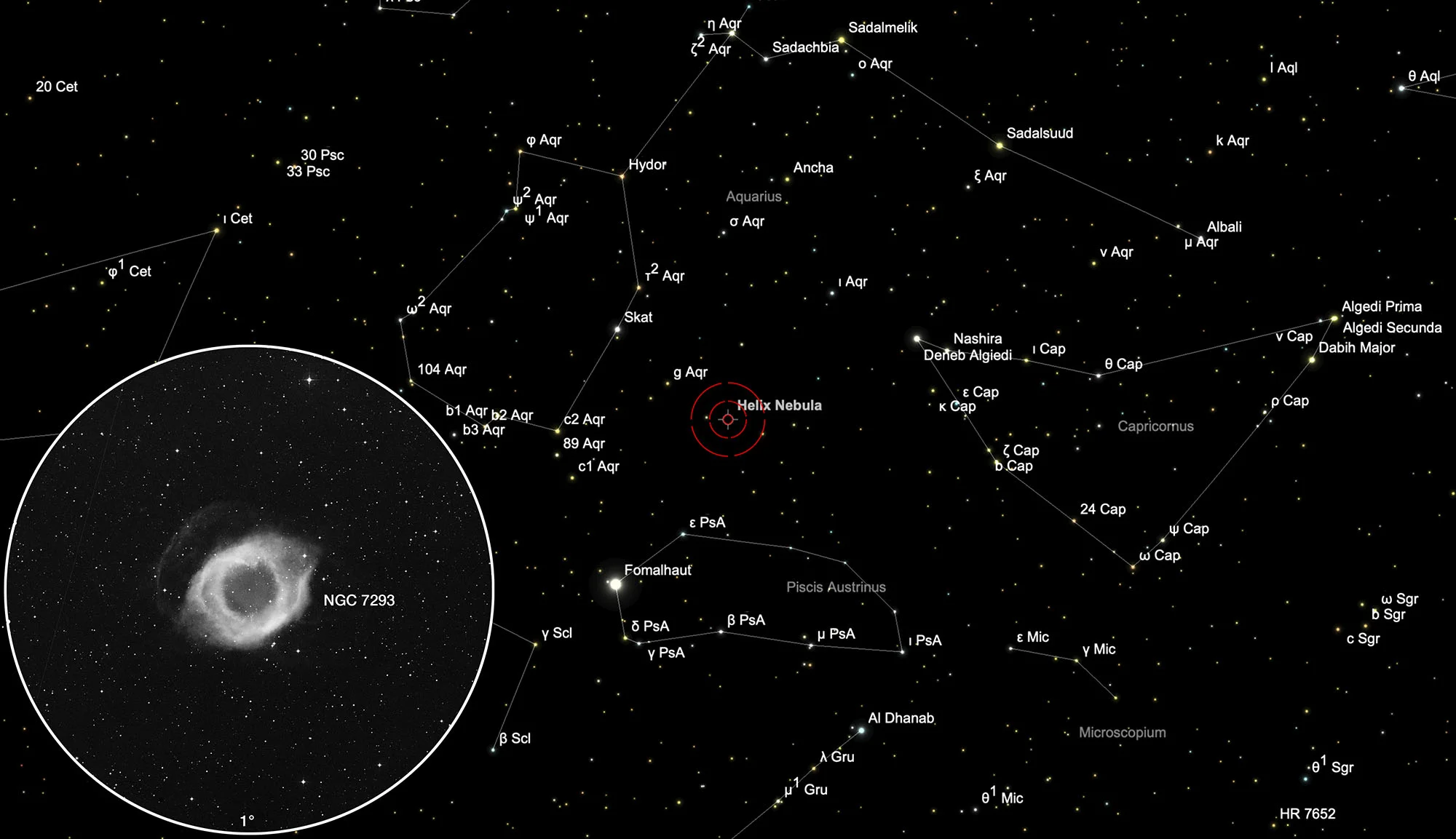

Chart Helix Nebula (NGC 7293)
Helix Nebula (NGC 7293) in constellation Aquarius. Chart created using SkySafari 6 Pro and STScI Digitized Sky Survey. [149, 160]

Visual Observation

The Helix Nebula is one of the brightest planetary nebulae and can already be found with binoculars. Nevertheless, details are only clearly visible in medium-sized telescopes. The bright ring is obvious. The ring thickness is about 1/4 of the diameter or the dark central spot is 1/2 of the diameter. The ring shape is slightly irregular. One part of the ring is even much weaker, giving the impression that it is a horseshoe. Fine, bright stars shimmer through the nebula. [192]

12.5" Ninja-Dobson, F:4.5 / TV-Panoptik 27mm, 53x, 1.28° und TV-Nagler 13mm, 111x, 0.74° / OIII-Filter
Eduard von Bergen

More Objects Nearby (±25°)
