Planetary Nebula Haro 3-75

Haro 3-75
Haro 3-75: Planetary nebula in Orion; 500 mm Cassegrain 3625 mm f/7.2, SBIG STL11K; 120+40+40+40 min LRGB; Bernese Highlands; © 2015 Radek Chromik

History

In 1953, the Mexican astronomer Guillermo Haro Barraza examined the Taurus-Auriga-Orion region with the 64 cm Schmidt camera at the Tonantzintla Observatory in Mexico. Previously, Alfred Harrison Joy at the Mount Wilson Observatory had discovered numerous stars with strong Hα emission lines, so-called T-Tauri stars. These are young stars that are uneven from a disk of dust. Haro discovered 75 more Hα stars on the photo plates exposed for up to 90 minutes. To number 75 he added the following note: «Strange object. The star is surrounded by a halo that shows emissions in Hα, N1, N2 and possibly other bright lines on images.» [451] The American astronomer Nicholas Ulrich Mayall finally recognized in 1964 that this was a planetary nebula. [144]

Physical Properties

On Simbad one finds a parallax of 0.2308 mas (milli-arcseconds), which corresponds to a distance of about 4.3 kpc (about 14'000 light years). The apparent brightness in different bands is: B = 14.8 mag, G = 13.8 mag, J = 12.0 mag, H = 11.5 mag, K = 11.3 mag. [145]

«Strasbourg-ESO Catalogue of Galactic Planetary Nebulae» Acker et al., 1992 [141]
DesignationsPN G193.6-09.5: H 3-75, PK 193-09.1, ARO 218
Right Ascension (J2000.0)5h 40m 45s
Declination (J2000.0)12° 21' 18"
Dimensions 24." (optical)
Radial Velocity+9.5 km/s ± 19.0 km/s
DiscovererMAYALL 1964

Finder Chart

The planetary nebula Haro 3-75 is located in the constellation Orion. The best observation time is October to February.

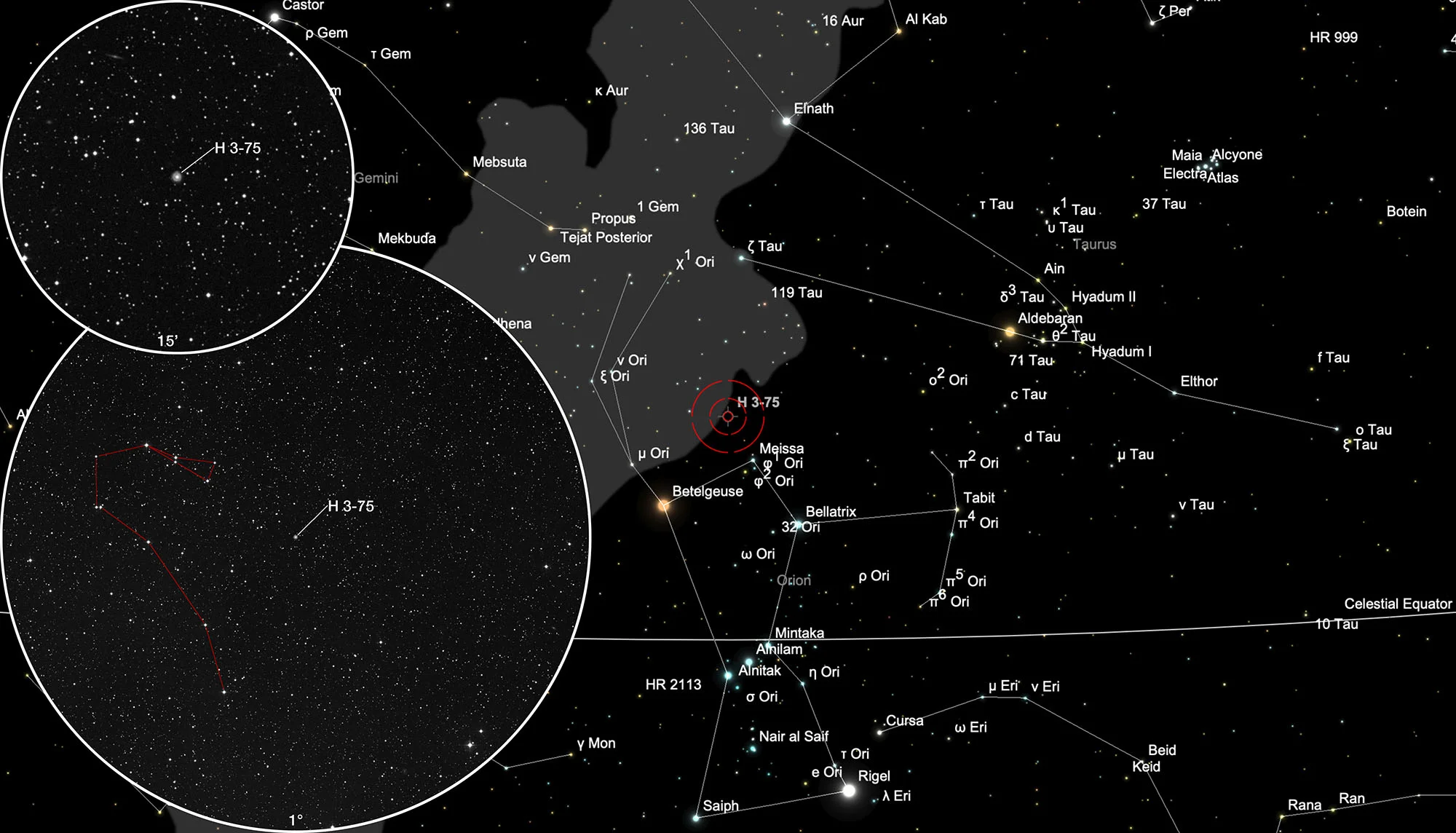

Chart Haro 3-75
Chart created using SkySafari 6 Pro and STScI Digitized Sky Survey. [149, 160]

References

141Strasbourg-ESO Catalogue of Galactic Planetary Nebulae; A. Acker, F. Ochsenbein, B. Stenholm, R. Tylenda, J. Marcout, C. Schohn; European Southern Observatory; ISBN 3-923524-41-2 (1992); cdsarc.unistra.fr/viz-bin/cat/V/84 (2021-02-18)
144Catalogue of Principal Galaxies (PGC); Paturel G., Fouque P., Bottinelli L., Gouguenheim L.; Astron. Astrophys. Suppl. Ser. 80, 299 (1989); cdsarc.unistra.fr/viz-bin/cat/VII/119 (2021-02-18)
145SIMBAD astronomical database; simbad.u-strasbg.fr/simbad
149SkySafari 6 Pro, Simulation Curriculum; skysafariastronomy.com
160The STScI Digitized Sky Survey; archive.stsci.edu/cgi-bin/dss_form
451«Nuevas Estrellas con Emisión en las regiones obscuras del Toro-Auriga-Orion investigadas por Joyi» Haro, G. ; Iriarte, B. ; Chavira, E.; Boletín de los Observatorios de Tonantzintla y Tacubaya Vol. 1 Num. 8, pp. 3-18 (1953); Bibcode:1953BOTT....1h...3H
